Building Robust Control Planes With P4TC API

Modern network device architectures are traditionally split into three layers: hardware, the software datapath, and the software control plane. Packet processing architectures on top of these layers are frequently tailored to the unique requirements of specific applications and organizations often with high degree of customization varying significantly based on internal culture and technical expertise. This is Conway’s Law in action: the system’s design mirrors the communication structure of the organization that builds it.

However, this customization often clashes with the rigid standards of upstream development and technological limitations:

Today, implementing a new "custom" protocol requires a simultaneous, ground-up changes or worse a redesign across the entire stack—hardware ASICs, kernel code, and control logic. P4TC (P4 Traffic Control) breaks this cycle. By using P4 as a standardized datapath definition language, P4TC ensures that no new kernel or user-space code is needed to define a new datapath. We enable the "scratching their own itch" principle, allowing Conway's Law to thrive without the technical debt of traditional integration.

This article, the third in our series, explores how P4TC leverages P4 to solve the final piece of the puzzle: building robust, customizable control plane interfaces. The article provides some brief background context, however, the reader would benefit by looking at the previous two articles. The first article discusses overall P4TC history, motivation and architecture. The second article describes the netlink architecture.

This organizational reflection often leads to technical silos where hardware and software layers become rigid and difficult to evolve.

Breaking the Rigidity of Traditional Layers

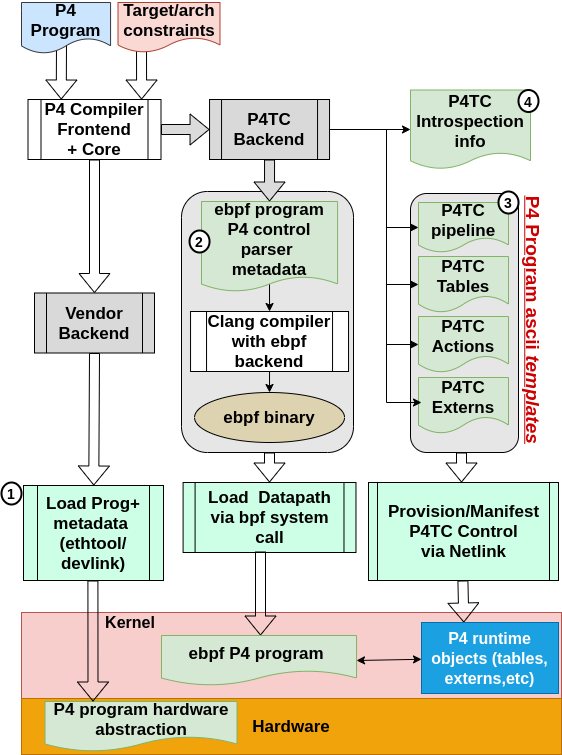

Figure 1 illustrates the P4TC workflow, showing how a single P4 program generates four distinct artifacts (highlighted in green):

  1. Hardware Program: Loaded directly into the hardware device.
  2. eBPF Program: Injected into the Linux kernel datapath.
  3. Control Templates: Objects that allow the P4 runtime to interact with the software.
  4. JSON Introspection: A file used by the P4TC runtime to understand the program's structure.
P4TC Workflow
Figure 1: P4TC Workflow

Overcoming Hardware Rigidity

Instead of relying on vendor-mandated, "bottom-up" ASIC architectures, P4 enables a "top-down" framework. P4TC developers can specify their own datapaths and manage configurations directly via the control plane, shifting power from the hardware vendor to the network architect.

Overcoming Datapath Software Rigidity

Integrating new packet-processing capabilities into the Linux kernel is notoriously slow and costly. As discussed in Why P4TC?, even simple updates to something like introducing a tc flower protocol header can take years to reach major distributions.

P4TC solves this by generating eBPF bytecode that is injected into TC and XDP kernel hooks (Step #2 in Figure 1). Because P4TC is embedded directly into TC, it provides a unified control path for both software and hardware objects (see Figure 2). This ensures that whether you are managing software logic or hardware offloads, you use the exact same interface.

NOTE

P4TC simplifies eBPF execution by eliminating the "Verifier Battle." The p4c-tc compiler generates "known-good" code that the kernel trusts, allowing for complex networking logic without the risk of rejection by the eBPF verifier.

Overcoming Runtime Control Path Rigidity

The P4TC control plane API is designed to support multiple transports between the control and datapath influenced by the ForCES concept of Transport Mapping Layer (TML) (see: RFC 5810 and RFC 5811). The current implementation only supports netlink transport. You can read more about why we chose netlink in Part 2 of this series.

TIP

Why use Netlink instead of the eBPF system call?
While eBPF has its own control interface to update maps etc, it lacks the features required for robust control. Rather than re-inventing the wheel within eBPF—which would lead to years of development lag—P4TC leverages the maturity, experience, and hardware offload interfaces already present in the Linux tc infrastructure and Netlink.

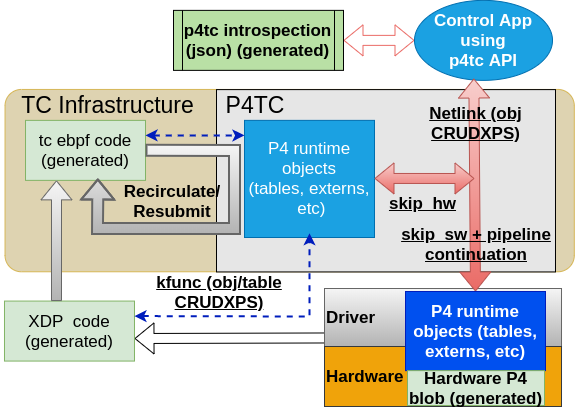

Figure 2: P4TC Runtime

Figure 2 highlights two game-changing features:

Bootstrapping The P4 Program For Control

P4 was originally designed as a datapath definition language, with no native support for control paths. To bridge this gap, the P4TC backend uses annotations—metadata embedded directly in the P4 code—to define how control constructs should behave.

P4TC Annotations: The "Glue"

Annotations act as the essential bridge between P4 logic and Linux TC. They guide the p4c-tc compiler in exposing datapath objects to the P4TC API via a JSON introspection file.

Let’s look at a simple example: redirect_l2 (source). This program parses Ethernet IPv4 packets and uses the source IP to look up a next-hop in nh_table. On a hit, it rewrites MAC addresses and redirects the packet; on a miss, it drops the packet.

control ingress(
    inout my_ingress_headers_t  hdr,
    inout my_ingress_metadata_t meta,
    in    pna_main_input_metadata_t  istd,
    inout pna_main_output_metadata_t ostd
)
{
    // @tc_type maps P4 types to Linux-native formats (dev, macaddr, etc.)
    action send_nh(@tc_type("dev") PortId_t port_id, @tc_type("macaddr") bit<48> dmac, @tc_type("macaddr") bit<48> smac) {
         hdr.ethernet.srcAddr = smac;
         hdr.ethernet.dstAddr = dmac;
         send_to_port(port_id);
    }

    action drop() {
        drop_packet();
    }

    table nh_table {
        key = {
            // @name provides a user-friendly alias for the control API
            hdr.ipv4.srcAddr : exact @tc_type("ipv4") @name("srcAddr");
        }
        actions = {
            @tableonly send_nh;
            drop;
        }
        size = REDIR_TABLE_SIZE;
        const default_action = drop;
    }

    apply {
        nh_table.apply();
    }
....
...
..
}

Key Annotations in redirect_l2:

P4TC Program Provisioning

The compiler produces a template script (refer to step #3 in Figure 1) to manifest the control objects required for the P4 runtime to interface with the hardware and software datapaths (refer to Figure 2). This bash script utilizes the tc utility to execute netlink commands within the kernel. For the redirect_l2 program, the output is as follows:

#!/bin/bash -x

set -e

: "${TC:="tc"}"
$TC p4template create pipeline/redirect_l2 numtables 1

$TC p4template create action/redirect_l2/ingress/send_nh actid 1 \
	param port_id type dev \
	param dmac type macaddr \
	param smac type macaddr
$TC p4template update action/redirect_l2/ingress/send_nh state active

$TC p4template create action/redirect_l2/ingress/drop actid 2
$TC p4template update action/redirect_l2/ingress/drop state active

$TC p4template create table/redirect_l2/ingress/nh_table \
	tblid 1 \
	type exact \
	keysz 32 permissions 0x3ca6 tentries 262144 nummasks 1 \
	table_acts act name redirect_l2/ingress/send_nh flags tableonly \
	act name redirect_l2/ingress/drop
$TC p4template update table/redirect_l2/ingress/nh_table default_miss_action permissions 0x1024 action redirect_l2/ingress/drop
$TC p4template update pipeline/redirect_l2 state ready

Once this script runs, the redirect_l2 pipeline is live and ready for runtime control.

NOTE

While the provisioning process will be detailed in a separate discussion, a reader cross-referencing the P4 program should be able to discern the functionality of the template from its structure.

P4TC Introspection

Based on the P4 program above, the compiler generates a JSON introspection file as illustrated in Figure 1. This file allows the runtime to understand the structure of the P4 program without needing hardcoded logic (see Figure 2).

{
  "schema_version" : "1.0.0",
  "pipeline_name" : "redirect_l2",
  "tables" : [
    {
      "name" : "ingress/nh_table",
      "id" : 1,
      "tentries" : 262144,
      "permissions" : "0x3ca6",
      "keysize" : 32,
      "keyfields" : [
        {
          "id" : 1, "name" : "srcAddr", "type" : "ipv4", "match_type" : "exact", "bitwidth" : 32
        }
      ],
      "actions" : [
        {
          "id" : 1,
          "name" : "ingress/send_nh",
          "action_scope" : "TableOnly",
          "params" : [
            { "id" : 1, "name" : "port_id", "type" : "dev", "bitwidth" : 32 },
            { "id" : 2, "name" : "dmac", "type" : "macaddr", "bitwidth" : 48 },
            { "id" : 3, "name" : "smac", "type" : "macaddr", "bitwidth" : 48
            }
          ],
          "default_hit_action" : false,
          "default_miss_action" : false
        },
        {
          "id" : 2,
          "name" : "ingress/drop",
          "action_scope" : "TableAndDefault",
          "default_miss_action" : true
        }
      ]
    }
  ]
}

Let's break down this definition:

Why Introspection Matters:

The JSON data model file is the secret to universal control planes. Because the API is "self-describing," a single control application can manage any P4 program. It simply reads the JSON to learn which tables, keys, and actions are available. In other words the application code never changes.

Introducing The P4TC API

The P4TC API is a resource-oriented Netlink interface. The interface follows a REST-inspired paradigm where every P4 object is a "noun" identified by a path, and operations are "verbs" aligning with CRUD+ semantics (Create, Read, Update, Delete, plus Event Subscription) with additional verbs for event subscription and unsubscription:

This approach allows to have a small set of verbs but infinite number of nouns, and is taken to avoid need to churn code every time a new object is introduced - which is different compared to the traditional netlink rpc flavor approach where the verb is intertwined with the noun (see discussion in: Part 1 of this series)

This allows generic control applications (like iproute2/tc) to manage any P4 program without needing to be recompiled for specific P4 logic.

P4TC CRUD+ Grammar

The following BNF grammar applies to API. The general syntax is of the form: <VERB> <NOUN> [DATA]+

The Grammar at a Glance

<COMMAND>    ::= <VERB> <NOUN> [<DATA>]+

<VERB>       ::= create | read (or get) | update | delete | subscribe | unsubscribe

<NOUN>       ::= <OBJTYPE> <PATH>
<OBJTYPE>    ::= table | extern
<PATH>       ::= <OBJECT NAME> [[key <KEYVAL>] | [filter <FILTERVAL>]]

Understanding the Components

More Details Of The Grammar

If as a human, you understood the BNF you can skip this section.

A NOUN consists of: OBJTYPE of the object followed by zero or more PATH to the object.

OBJTYPE is one of: table or extern

PATH is a path to the object which may optionally have a key or a filter qualifier. read and delete can have zero or more PATH. When no PATH is present on the object it implies every entity in that object; for example all entries of a table object.

A key is used to do lookups and can only be a table key or an extern parameter annotated with attribute @tc_key in the generated json file. A key can be used in verbs create, read, update, and delete.

A filter is like an sql select construct. It can be used in verbs read, update, delete and subscribe verbs. A filter description can use both table keys and action parameters as well as metadata unrelated to the control objects.

DATA is optional depending on the verb. Only create and update have DATA. DATA MUST be qualified by a key.

Illustrating The P4TC CRUD+ Grammar

Using a conceptual command-line tool p4tccli, here is how you would interact with the redirect_l2 program (We'll discuss the exact API details later):

CLI="./p4tccli"
PNAME="redirect_l2"
TNAME="ingress/nh_table"

#Subscribe to all events on table $TNAME. You will get back a subscription ID ($SUB_ID holds subscription id)
# "all events" means: Any time a table entry is created, updated or deleted you will get notification
$CLI $PNAME subscribe table $TNAME

#Create table entry with key srcAddr 192.168.1.1 (will generate create event)
#action ingress/send_nh to rewrite dmac to 00:11:22:33:44:55 smac to 66:77:88:99:AA:BB and send out port eth0
$CLI $PNAME create table $TNAME key srcAddr 192.168.1.1 action ingress/send_nh port_id eth0 dmac 00:11:22:33:44:55 smac 66:77:88:99:AA:BB

#Create table entry with key srcAddr 192.168.1.2 (will generate create event)
#action ingress/send_nh to drop
$CLI $PNAME create table $TNAME key srcAddr 192.168.1.2 action ingress/send_nh port_id eth0 dmac 00:11:55:44:33:22 smac 66:78:89:9A:AA:BB

#Read back table entry with key srcAddr 192.168.1.1
$CLI $PNAME read table $TNAME key srcAddr 192.168.1.1

#Dump all the table entries (should see two entries)
$CLI $PNAME read table $TNAME

#Update table entry for 192.168.1.1 to drop on match (will generate update event)
$CLI $PNAME update table $TNAME key srcAddr 192.168.1.1 action ingress/drop

#Delete the table entry for 192.168.1.1 (will generate a delete event)
$CLI $PNAME delete table $TNAME key srcAddr 192.168.1.1

#Flush all table entries (will generate one delete event)
$CLI $PNAME delete table $TNAME

#unsubscribe from all events on table $TNAME
$CLI $PNAME subscribe table $TNAME id $SUB_ID

P4TC API Optimizations

To handle high-scale networking requirements, the P4TC control plane offers three primary scaling features: Sharding, Batching, and Filtering.

1. P4TC Control Sharding

Because P4TC uses Netlink, it inherits the ability to handle concurrent access. Multiple applications or threads can access control objects in the kernel simultaneously.

2. P4TC CRUD+ Batching

Batching allows you to group multiple CRUD commands into a single system call. This significantly reduces the overhead of crossing the user-kernel boundary.

Batching Create

You can send a single request to create dozens or hundreds of table entries at once.

#lets subscribe to the table's events to track what is going on
$CLI $PNAME subscribe table $TNAME
#save the subscription ID
SUB_PID=$!
sleep 1
SUB_ID=$(grep "Subscription ID:" sub.out | awk '{print $3}')
echo "Saved Subscription ID: $SUB_ID"

#Batched creation of three entries in a single call (we should see 3 create events)
$CLI $PNAME create table $TNAME \
  key srcAddr 192.168.1.1 action ingress/send_nh port_id eth1 dmac 00:AA:BB:CC:DD:EE smac 11:22:33:44:11:11 \
  key srcAddr 192.168.1.2 action ingress/send_nh port_id eth1 dmac 00:AA:BB:CC:DD:EE smac 11:22:33:44:11:22 \
  key srcAddr 192.168.1.3 action ingress/drop

#dump the table (should see 3 entries)
$CLI $PNAME read table $TNAME

Batching Read With Keys

Similarly, you can update or delete multiple specific entries in one transaction by providing a list of keys. Later on we'll show another approach using filters.

$CLI $PNAME read table $TNAME \
    key srcAddr 192.168.1.2 \
    key srcAddr 192.168.1.3

Batching Update

Similarly, you can update multiple specific entries in one transaction by providing a list of keys and what to portions of the data to change. Later on we'll show another approach using filters.

#Update batched table entries (should see two update events)
$CLI $PNAME update table $TNAME \
  key srcAddr 192.168.1.2 action ingress/send_nh port_id eth0 dmac 00:BB:CC:DD:EE:11 smac 00:22:33:44:55:66 \
  key srcAddr 192.168.1.3 action ingress/send_nh port_id eth0 dmac FF:EE:DD:CC:BB:AA smac 99:88:77:66:55:44

Batching Delete With Keys

Similarly, you can selectively delete multiple specific entries in one transaction by providing a list of keys. Note: if we didnt specify the keys below we can delete the whole table.

Later on we'll show another approach using filters.

#selectively delete these two entries (we should see two delete events)
$CLI $PNAME delete table $TNAME \
    key srcAddr 192.168.1.2 \
    key srcAddr 192.168.1.3

3. P4TC CRUD+ Filters

Filters are the most powerful scaling feature in P4TC. They allow you to perform mass operations based on data values rather than just keys, similar to an SQL WHERE clause. Filters follow a DSL - which requires a separate discussion; our goal in this document is to illustrate the power of using such filters to scale control operations.

Filters apply to different constructs full or partial table keys and extern keys, full or partial table entry action parameter values, and extern parameter values.

For purposes of illustration, consider a scenario where the "ingress/nh_table" contains one million entries. Within this table, assume that 50,000 entries designate "eth0" as their port_id action, while another 50,000 entries are directed to port_id "eth1".

Selective Mass Read/Update/Delete Operations With Filters

Let's illustrate these features using filtering for action send_nh port_id parameter value.

#Subscribe to table events with filter for $TNAME so we can keep track of state change
$CLI $PNAME subscribe table $TNAME  > sub.out 2>&1 &
SUB_PID=$!
SUB_ID=$(grep "Subscription ID:" sub.out | awk '{print $3}')

#Read table with filter - should return 50K entries
$CLI $PNAME read table $TNAME filter param.act.ingress.send_nh.port_id = eth0

# Update entries with send_nh.port_id = "eth0" to change the action to a drop. Should update 50K entries (we will get 50K events)
$CLI $PNAME update table $TNAME filter param.act.ingress.send_nh.port_id = eth0 action ingress/drop

# Delete all entries with send_nh.port_id = "eth1". should delete 50K entries (we will get 50K events)
$CLI $PNAME delete table $TNAME filter param.act.ingress.send_nh.port_id = eth1

$CLI $PNAME unsubscribe table $TNAME id $SUB_ID
kill $SUB_PID
rm sub.out

Filtered Subscriptions

As may be observed above we receive a lot of events when we are doing mass update/delete. We can mitigate this with a control app only subscribing to a subset of events. To scale this further we can have multiple applications or threads filtering selective events.

#Subscribe to table events with filter for matching only when action port_id = "eth0"
$CLI $PNAME subscribe table $TNAME param.act.ingress.send_nh.port_id = \"eth0\" > sub.out 2>&1 &

#Flush table entries. We should see 50K delete events (with action port_id = "eth0") even though we have deleted 1M entries
$CLI $PNAME delete table $TNAME

$CLI $PNAME unsubscribe table $TNAME id $SUB_ID

More Advanced Filters

P4TC filters support complex expressions, metadata, and logical operators (&&, ||, !).

#Read all entries where the action parameter for port_id is not eth0
CLI $PNAME read table $TNAME filter param.act.ingress.send_nh.port_id != eth0

#Delete table entries which have not see any activity for over 30 seconds
$CLI $PNAME delete table $TNAME filter msecs_since > 30000

#Read entries which have port_id = eth0 but last used < 10s ago
$CLI $PNAME read table $TNAME filter param.act.ingress.send_nh.port_id = eth0 && msecs_since < 10000

#read entries that have port_id as eth0 or eth1
$CLI $PNAME read table $TNAME filter param.act.ingress.send_nh.port_id = eth0 || param.act.ingress.send_nh.port_id = eth1

#update all entries with port_id = eth0 and dmac != b8:ce:f6:4b:68:35 that have not seen traffic in more than 30 seconds to have a new action drop
$CLI $PNAME update table filter $TNAME (param.act.ingress.send_nh.port_id = eth0 && param.act.ingress.send_nh.dmac != b8:ce:f6:4b:68:35 && msecs_since > 30000) action ingress/drop

#Subscribe to table events with filter for matching only when action port_id = "eth0" and it is a **create** verb
$CLI $PNAME subscribe table filter $TNAME cmd = create && param.act.ingress.send_nh.port_id = \"eth0\"

P4TC Runtime API: Identity And Permissions

Identity is a 32 bit id that is used to identify the control plane source that is updating table or extern state. In the long run we would like to see some authentication and authorization of each identity before they are allowed to interact with the datapath. At the moment there are default reserved IDs which are defined in file /etc/iproute2/p4tc_entities

ID Entity Description
0 unspec Unspecified
1 kernel Linux Kernel
2 tc Traffic Control
3 timer Kernel Timer

The kernel, tc and kernel timer (for dynamic entries which expire) have reserved identities. A control plane implementation can add a new set of identities by placing a file with .conf extension with /etc/iproute2/p4tc_entities_d Example:

cat /etc/iproute2/p4tc_entities.d/p4tccli.conf
186  p4tccli

Lets dump a single entry from redirect_l2 table ingress/nh_table to illustrate the different identities.

[
  {
    "pname": "redirect_l2",
    "pipeid": 1
  },
  {
    "entries": [
      {
        "tblname": "ingress/nh_table",
        "key": [ {...}],
        "actions": {
          "actions": [{...}]
        },
        "create_whodunnit": "tc", //application is using TC as identity
        "create_whodunnit_id": 2, // TC is identity 2.
        "who_created_pid": 522,  // the entry was created by processid 522
        "who_created": "p4tccli", // the name of the process was p4tccli
        "update_whodunnit": "tc",
        "update_whodunnit_id": 2,
        "who_updated_pid": 525, // entry was updated by process id 525
        "who_updated": "p4tccli", // the process name was "p4tcli"
        "dynamic": "false",
        "created": 7,        // this entry was created 7 seconds ago
        "last_used": 6,      // it was last used 6 seconds ago
      }
    ]
  }
]

Object Permissions: @tc_acl

@tc_acl annotation is used to define the object access control information. The compiler uses this information to provide details to the template and json introspection file. The format CRUDXPS(Create, Read, Update, Delete, eXecute, Publish, Subscribe) in quotes is used in the annotation in the form of "Control plane ACL":"Datapath ACL". When not specified, the default values are assumed. For the control plane the default is CRUDS and for the datapath the default is RXP. The compiler generates the numeric values in the introspection as well as template outputs.

At the moment the only events supported are announcements to changes to the shared control data. For example, if an update happens from either the control or datapath, then the control plane applications which subscribed to events will get notified. Current events that can be generated are for Create, Update and Delete operations to an extern. All published events in P4TC carry an identity "whodunnit" field which indicates who/what entity initiated the change for which the event is reported.

For the sake of this article, lets focus on tables; however, everything discussed here applies to externs as well (to be discussed in the next article).

There are two types of table permissions:

Furthermore in both cases the permissions are split into datapath vs control path. The template definition can set either one. For example, one could allow for the datapath to add/delete table entries in case of PNA add-on-miss is needed.

Table Permissions

Furthermore in both cases the permissions are split into datapath vs control path. The template definition can set either one. For example, one could allow for the datapath to add/delete table entries in case of PNA add-on-miss is needed.

Table Permissions

Tables can have permissions which apply to all the entries in the specified table. Permissions are defined for both what the control plane (user space) as well as the data path are allowed to do.

The permissions field is a 16bit value which will hold CRUDXPS (create, read, update, delete, execute, publish and subscribe) permissions for control and data path. Bits 13-7 will have the CRUDXPS values for control and bits 6-0 will have CRUDXPS values for data path. By default each table has the following permissions:

CRUD--S-R--XP-

Which means the control plane can perform CRUDPS operations whereas the data path can only Read and execute on the entries.

Lets dump the template for redirect_l2:

[
  {
    "obj": "table",
    "pname": "redirect_l2",
    "pipeid": 1,
    "tblid": 1,
    "tname": "ingress/nh_table",
    "keysz": 32,
    "max_entries": 262144,
    "permissions": "CRUD--S-R--XP-",
  }
]

Clearly the control plane is allowed to Create, Read, Update, Delete and Subscribe on this table whereas the datapath can Read, Execute and Publish.

Table Entry Permissions

By default all table entries inherit the table permissions. Let's read and entry from redirect_l2:

[
  {
    "pname": "redirect_l2",
    "pipeid": 1
  },
  {
    "entries": [
      {
        "tblname": "ingress/nh_table",
        "tblid": 1,
        "permissions": "CRUD--S-R--XP-",
        "key": [
          {
            "keyfield": "srcAddr",
            "id": 1,
            "width": 32,
            "type": "ipv4",
            "match_type": "exact",
            "fieldval": "192.168.1.2/32"
          }
        ],
        "actions": {
          "actions": [
            {
              "order": 1,
              "kind": "redirect_l2/ingress/drop",
              "index": 4,
            }
          ]
        },
        ...
        ...
      }
    ]
  }
]

however, the control plane can specify permissions when adding entries to override the table permissions. Lets say a table has CRUD----R--X-- permissions as defined by the template. At runtime the user could add entries which are "const" - by specifying the entry's permission as -R------R--X--.

An interesting example is the famous calc program (source) which has constant table entries.

    table calculate {
        key = {
            hdr.p4calc.op        : exact @name("op");
        }
        actions = {
            operation_add;
            operation_sub;
            operation_and;
            operation_or;
            operation_xor;
            operation_drop;
        }
        const default_action = operation_drop();
        const entries = {
            P4CALC_PLUS : operation_add();
            P4CALC_MINUS: operation_sub();
            P4CALC_AND  : operation_and();
            P4CALC_OR   : operation_or();
            P4CALC_CARET: operation_xor();
        }
    }

Let's see the permissions on the entries for calc for one of the entries when we read it at runtime:

[
  {
    "pname": "calc",
    "pipeid": 1
  },
  {
    "entries": [
      {
        "tblname": "MainControlImpl/calculate",
        "tblid": 1,
        "prio": 64000,
        "permissions": "-R------R--X--",
        "key": [
          {
            "keyfield": "op",
            "id": 1,
            "width": 8,
            "type": "bit8",
            "match_type": "exact",
            "fieldval": "43/0xff"
          }
        ],
        "actions": {
          "actions": [
            {
              "order": 1,
              "kind": "calc/MainControlImpl/operation_add",
              "index": 1,
              "ref": 1,
              "bind": 1,
              "params": []
            }
          ]
        },
        "create_whodunnit": "tc",
        "create_whodunnit_id": 2,
        "who_created_pid": 628,
        "who_created": "tc",
        "dynamic": "false",
        "created": 3212,
        "last_used": 3212,
        "tmpl_created": "true"
    ]
  }
]
NOTE

These table entries cannot be updated or deleted at runtime. Any attempt to add an entry of a table which is read-only at runtime will get a permission denied response back from the kernel.

P4TC Runtime API: Lifecycle of Operations

This document describes the end-to-end workflow of P4TC operations, using the redirect_l2 example for illustration.

1. General Preparation Stage

Every operation begins with initializing the environment and staging binary data.

A. Context and Provisioning

// Create the runtime context (Netlink transport)
struct p4tc_runt_ctx *ctx = p4tc_runt_ctx_create(P4TC_TML_OPS_NL);

B. The Object Container

// Create a container for Table operations
struct p4tc_obj *obj = p4tc_obj_create("redirect_l2", P4TC_OBJ_RUNTIME_TABLE);

// Create a container for extern operations
struct p4tc_obj *obj = p4tc_obj_create("myprog", P4TC_OBJ_RUNTIME_EXTERN);

2. Implementation Patterns by Operation

A. Create Table Entries (including Batching)

Stages one or more keys and actions, then sends them to the datapath in a single transaction.

p4tc_obj_objname_set(obj, "ingress/nh_table");

// Entry 1
struct p4tc_key *key1 = p4tc_make_key(obj, "192.168.1.1");
struct p4tc_runt_tbl_attrs *entry1 = p4tc_alloc_tbl_entry(obj, key1, 0, P4TC_ENTITY_TC);
p4tc_create_runt_act(entry1, "ingress/send_nh", "eth0", "00:11:22:33:44:55", "66:77:88:99:AA:BB");

// Entry 2 (Batching)
struct p4tc_key *key2 = p4tc_make_key(obj, "192.168.1.2");
struct p4tc_runt_tbl_attrs *entry2 = p4tc_alloc_tbl_entry(obj, key2, 0, P4TC_ENTITY_TC);
p4tc_create_runt_act(entry2, "ingress/drop");

// Invoke and Confirm for the entire batch
if (p4tc_create(ctx, obj, 0, NULL, NULL) == 0) {
    p4tc_resp_handle(ctx); // Blocks for ACK
}

B. Update Entries (Key or Filter)

Updates can be targeted using either a specific entry key or a filter. These methods are mutually exclusive for a single operation.

// Pattern 1: Update by Key
p4tc_obj_objname_set(obj, "ingress/nh_table");
struct p4tc_key *key = p4tc_make_key(obj, "192.168.1.1");
struct p4tc_runt_tbl_attrs *entry = p4tc_alloc_tbl_entry(obj, key, 0, P4TC_ENTITY_TC);
p4tc_create_runt_act(entry, "ingress/drop");

p4tc_update(ctx, obj, 0, NULL, NULL);
p4tc_resp_handle(ctx);

// Pattern 2: Update by Filter (Mass Update)
struct p4tc_obj *filter_obj = p4tc_obj_create("redirect_l2", P4TC_OBJ_RUNTIME_TABLE);
p4tc_obj_objname_set(filter_obj, "ingress/nh_table");
p4tc_obj_filter_set(filter_obj, "param.act.ingress.send_nh.port_id = eth0");

struct p4tc_runt_tbl_attrs *f_entry = p4tc_alloc_tbl_entry(filter_obj, NULL, 0, P4TC_ENTITY_TC);
p4tc_create_runt_act(f_entry, "ingress/drop");

p4tc_update(ctx, filter_obj, 0, NULL, NULL);
p4tc_resp_handle(ctx);

C. Get/Read Operations

// Pattern 1: Single Entry
p4tc_obj_objname_set(obj, "ingress/nh_table");
struct p4tc_key *key = p4tc_make_key(obj, "192.168.1.1");
p4tc_alloc_tbl_entry(obj, key, 0, P4TC_ENTITY_TC);
p4tc_get(ctx, obj, 0, my_callback, NULL);
p4tc_resp_handle(ctx);

// Pattern 2: Filtered Read
struct p4tc_obj *f_obj = p4tc_obj_create("redirect_l2", P4TC_OBJ_RUNTIME_TABLE);
p4tc_obj_objname_set(f_obj, "ingress/nh_table");
p4tc_obj_filter_set(f_obj, "prio = 1");
p4tc_get(ctx, f_obj, 0, my_callback, NULL);
p4tc_resp_handle(ctx);

// Pattern 3: Table Dump (No key or filter)
p4tc_obj_objname_set(obj, "ingress/nh_table");
p4tc_get(ctx, obj, 0, my_callback, NULL); // ROOT flag is automatically applied
p4tc_resp_handle(ctx);

D. Delete Operations

// Pattern 1: Single Delete
p4tc_obj_objname_set(obj, "ingress/nh_table");
struct p4tc_key *key = p4tc_make_key(obj, "192.168.1.1");
p4tc_alloc_tbl_entry(obj, key, 0, P4TC_ENTITY_TC);
p4tc_del(ctx, obj, P4TC_MSG_ACK, NULL, NULL);
p4tc_resp_handle(ctx);

// Pattern 2: Filtered Delete (Mass Delete)
p4tc_obj_filter_set(obj, "param.act.ingress.send_nh.port_id = eth1");
p4tc_del(ctx, obj, 0, NULL, NULL);
p4tc_resp_handle(ctx);

// Pattern 3: Table Flush (No key or filter)
p4tc_obj_objname_set(obj, "ingress/nh_table");
p4tc_del(ctx, obj, P4TC_MSG_ACK, NULL, NULL); // ROOT flag is automatically applied
p4tc_resp_handle(ctx);

E. Subscription Management

Subscriptions can be narrowed using filters to only receive events for specific entries.

// 1. Subscribe to events on nh_table matching a filter
p4tc_obj_objname_set(obj, "ingress/nh_table");
p4tc_obj_filter_set(obj, "key.srcAddr = \"192.168.1.2\"");
int sub_id = p4tc_subscribe(ctx, obj, 0, my_event_callback, NULL);

if (sub_id > 0) {
    // 2. Start background event listener
    p4tc_subscribe_resp_handle(ctx, sub_id);

    // ... wait or perform other work ...

    // 3. Unsubscribe when finished
    p4tc_unsubscribe(ctx, sub_id);
}

3. Parameter and Callback Reference

The parameters used in p4tc_XXX() and the logic in the resulting callback differ based on whether you are dealing with a single entry or multiple.

Common Parameters

The Callback Lifecycle (p4tc_callback)

The callback is triggered by p4tc_resp_handle() and receives the data retrieved from the datapath. The trans_phase and p4tc_obj parameters tell you the status of the retrieval.

Single Entry Pattern

When fetching one entry, the callback is usually triggered once or twice:

  1. P4TC_PHASE_SOT: The data for the requested entry is present in p4tc_obj.
  2. P4TC_PHASE_EOT: The transaction is complete. p4tc_obj is typically NULL.
Table Dump Pattern

When performing a dump, the callback is triggered for every entry in the table:

  1. P4TC_PHASE_SOT: Triggered for the first entry found. p4tc_obj contains this entry.
  2. P4TC_PHASE_MOT: Triggered for all subsequent entries. Each call contains exactly one entry in p4tc_obj.
  3. P4TC_PHASE_EOT: Triggered after the final entry has been delivered. p4tc_obj is NULL.
  4. P4TC_PHASE_ABT: Triggered if the dump was interrupted or failed.

Sample Implementation

This example handles both single-entry and multi-entry results for redirect_l2:

int my_get_callback(const struct p4tc_obj *p4tc_obj, struct p4tc_runt_ctx *ctx,
                    __u64 *cookie, enum p4tc_trans_phase trans_phase)
{
    const char *label = (const char *)cookie;

    switch (trans_phase) {
    case P4TC_PHASE_SOT:
        printf("[%s] Beginning data reception...\n", label);
        /* Fall through: SOT also carries the first entry */
    case P4TC_PHASE_MOT:
        if (p4tc_obj) {
            // Process the entry (e.g., print it)
            printf("[%s] Entry found:\n", label);
            p4tc_obj_dump(p4tc_obj);
        }
        break;
    case P4TC_PHASE_EOT:
        printf("[%s] All data received successfully.\n", label);
        break;
    case P4TC_PHASE_ABT:
        fprintf(stderr, "[%s] Operation failed or was aborted.\n", label);
        return -1;
    }
    return 0;
}

Appendix 1: P4TC Supported Annotations And Types

These annotations are specific to the TC backend and are typically prefixed with tc_.

The following annotations apply to externs.

Annotation Description
@tc_data Marks a field in a control path struct as action data (parameters).
@tc_data_scalar A variation of @tc_data used specifically for scalar action data values.
@tc_numel Defines the capacity or number of elements for an extern (e.g., the size of a counter array or table).
@tc_init_val Specifies the initial value for a TC entity (e.g., an extern's starting state).
@tc_ControlPath Identifies P4 elements (tables/actions) that should be exposed to or managed by the control path.
@tc_may_override Used with default actions to indicate that the control plane is allowed to override them at runtime.
@tc_md_read Identifies metadata fields that the P4 program expects to read from the TC metadata area.
@tc_md_write Identifies metadata fields that the P4 program is allowed to write to in the TC context.
@tc_md_exec Identifies metadata that influences execution flow or is used within a specific execution context.

The following annotations apply to all.

Annotation Description
@tc_type Maps a P4 data type to a TC-native type (e.g., macaddr, ipv4, ipv6, be16, be32, be64, dev). Used on action parameters or struct fields. This allows the control plane to perform proper input validation and pretty-printing.
@tc_acl Access Control: Defines permissions for a table or extern, specifying accessibility from the Control Path (Netlink) vs. Data Path (P4 code).
@tc_key Explicitly marks a field in a control path struct as a match key.
@nummask Resource Hint: Specifies the maximum number of unique masks allowed for a ternary match table, helping the backend stay within kernel/hardware constraints.
@default_hit Hit Behavior: Designates an action as the default behavior when a table lookup results in a match ("hit").
@default_hit_const Fixed Hit Behavior: Indicates that the default hit action is constant and cannot be modified by the control plane.
@tableonly Action Constraint: Restricts an action to be used only as a regular table entry.
@defaultonly Action Constraint: Restricts an action to be used only as a default action.
@name External Identity: Provides an explicit external name for an object, overriding the internal P4 identifier for user-facing tools.

Supported Match Types

The backend supports the following table match types, mapped to TC's internal classifier logic are defined in include/uapi/linux/p4tc.h enum p4_tc_match_type

Match Type TC Constant Description
exact P4TC_MATCH_TYPE_EXACT Exact value match.
lpm P4TC_MATCH_TYPE_LPM Longest Prefix Match. Has value and mask.
ternary P4TC_MATCH_TYPE_TERNARY Ternary match using value and mask.

Supported Data Types

The P4 tc backend supports, in addition to P4 datatypes, a specific set of data types that are mapped from P4 to TC-native representations. TC specific data types are defined in include/uapi/linux/p4tc.h These types can be specified using the @tc_type("type_name") annotation on table keys, action parameters, or struct fields.

P4 bit types bit<X> which are not part of the ones listed above are supported as type bitX where X is an arbitrary number unless overridden by the @tc_type annotation - for example the action send_nh() parameter dmac is described as @tc_type("macaddr") bit<48> dmac - making it available to the p4tc control api in a Colon-Hexadecimal format.

Type Name Description
dev Represents a network interface/device name in human readable linux naming convention e.g "eth0"
macaddr Represents a 48-bit Ethernet MAC address Colon-Hexadecimal format i.e. Six pairs separated by colons (e.g., 00:40:96:81:4A:2B).
ipv4 Represents a 32-bit IPv4 address in dotted-decimal notation as four decimal numbers (octets), each ranging from 0 to 255, separated by periods (e.g., 192.168.1.1)
ipv6 Represents a 128-bit IPv6 address represented as eight groups of four hexadecimal digits, separated by colons (:), such as 2001:0db8:85a3:0000:0000:8a2e:0370:7334. Addresses can be simplified by removing leading zeros in any group and replacing a single, consecutive string of all-zero groups with a double colon (::)
bitX Standard P4 bitstring (default type). See discussion below
bit8 P4 type bit8 unsigned integer.
bit16 P4 type bit16 unsigned integer.
bit32 P4 type bit32 unsigned integer.
bit64 P4 type bit64 unsigned integer.
bit128 P4 type bit128 unsigned integer.
int8 8 bit signed integer.
int16 16 bit signed integer.
int32 32 bit signed integer.
int64 64 bit signed integer.
int128 128 bit signed integer.
be16 16-bit Big-Endian integer.
be32 32-bit Big-Endian integer.
be64 64-bit Big-Endian integer.
string null terminated string.
bool boolean.

By combining P4's expressive datapath definition with a mature, resource-oriented control API, P4TC provides the final piece of the puzzle for building truly flexible, high-performance network stacks in Linux.





Contact Us
